SMART Container Bins

SMART Container Bins from BE&E are a robust and cost-effective biomass storage/feeder solution repurposed from sea containers to complete your quality material handling system.

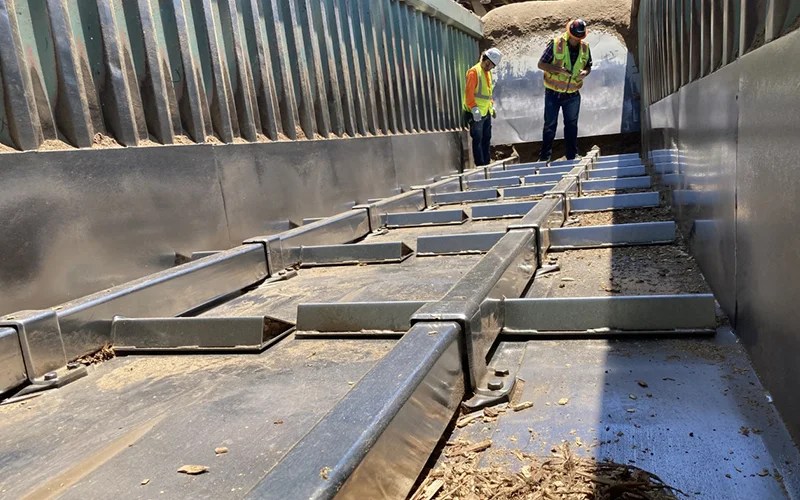

The solution can be easily expanded and changed to fit current or future needs. The unique push/pull wedge floor system moves materials evenly and consistently. Our SMART Container Bins are a fast, flexible, convenient, and affordable solution for reliable and consistent feed.

SMART Container Bins

• Installs quickly, often in a day or weekend
• Units can be stationary or mobile
• Units can be placed side by side to offer redundancy or the blending of various materials
• Units can be stacked vertically (up to three high) for increased capacity
• SMART Floors operate more efficiently and more reliably than traditional, vertical silos
• They’re a green solution: repurposed sea containers make excellent material for storage bins
• Can be made dust tight
• May not require building permits to operate
• Can be easily moved and reconfigured
• Material is first in, first out

Mobile Option

• Ready to operate upon delivery
• SMART Floors provide accurate discharge rates
• Quickly couples to HPU or runs from truck PTO
• When Unit 1 is empty, Unit 2 activates and begins unloading while Unit 1 refills
• Expandable: easily add more receiving stations
• Units serve as your storage, transport, and metering device

Stationary Options

Single unit with optional Metering Bin

• Optional metering device at the discharge end with centering screw for increased accuracy of the material feed rate
• Available with closed or open tops
• Available in high-cube and standard heights

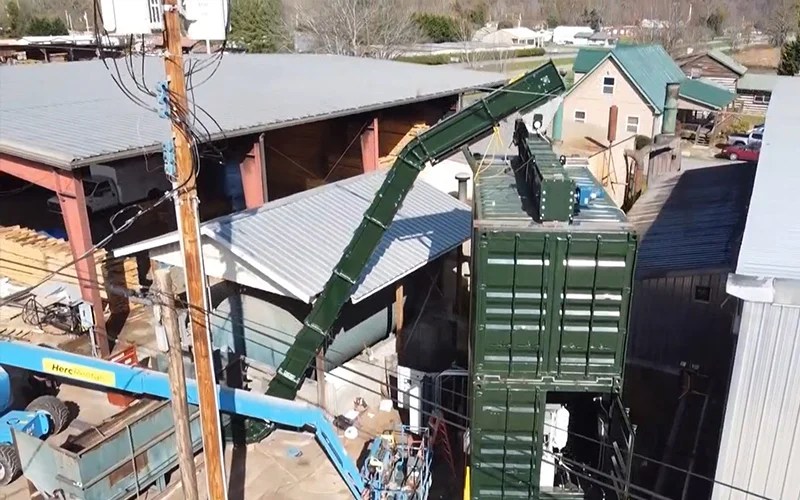

Double Stack

• Containers stack for increased capacity while limiting the storage footprint
• We remove the floor from the upper unit to provide a strong, uniform, and affordable solution
• A conveyor fills and levels the input material

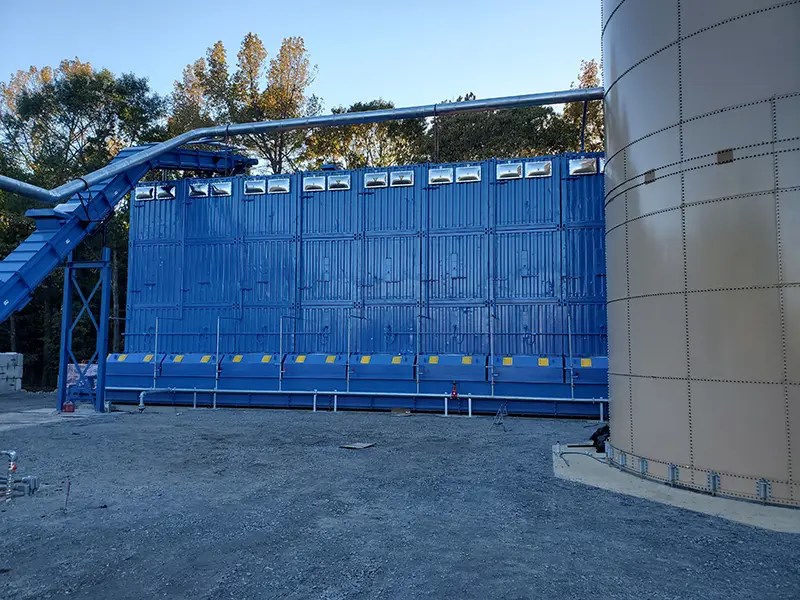

Triple Stack

• Containers stack for increased capacity while limiting the storage footprint
• We remove floors from upper units to provide a strong, uniform, and affordable solution
• Material is first in, first out
• A conveyor fills and levels the input material

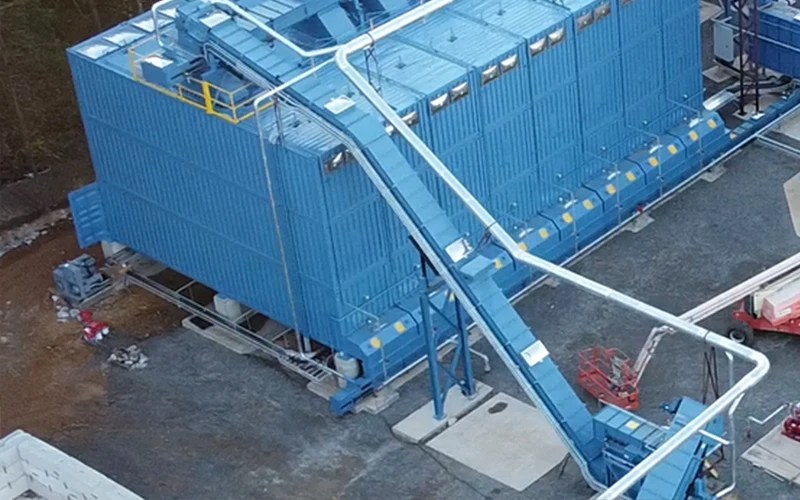

Triple Stack/X Units Wide

• Same features as the Triple Stack but with a slightly longer installation time
• Segregate materials
• Blend materials upon discharge
• Modular – expansion is simple
• Place containers side-by-side to add modular capacity
